The Holy Grail — and Why It Earned That Name
There are compressors that engineers reach for, and then there is the Fairchild 670. For over sixty years it has sat at the apex of the compression world — not because of marketing, not because of scarcity alone, but because no one has completely explained why it sounds the way it does and managed to fully replicate it. That mystery is the point. A well-maintained Fairchild does something to audio that no other device quite matches: it makes everything sound more present, three-dimensional, and alive, often while barely moving the gain-reduction meter.
Fewer than 1,000 stereo 670 units were ever manufactured. Very few of those survive in working condition. The ones that do command prices above $30,000 — when they can be found at all. And every year, a new wave of engineers builds studios with the singular goal of eventually owning one. That is not nostalgia. That is a compressor that has outlasted decades of "better" technology and still wins the shootout.
"Right the way through my studio career the Fairchild 670 was a staple in any commercial studio... They were rolled out like secret weapons to bring an electric guitar to life or add punch to a snare drum or bass drum, or to squash an entire mix."
Pete Townshend — The WhoFrom a Basement in New Jersey to Every Major Studio on Earth
The Fairchild story begins with Rein Narma, an Estonian-born engineer who had fled World War II and arrived in the United States working for the United Nations. By the early 1950s, Narma was one of the most sought-after audio technicians in the New York area. His clients were not small: he built custom mixing consoles for Rudy Van Gelder, the engineer behind hundreds of Blue Note Records masterpieces, and for guitar inventor and recording pioneer Les Paul — including Les Paul's legendary "Monster" desk paired with his "Octopus" 8-track Ampex recorder.
Narma was frustrated by the limitations of available dynamics processors and began developing a better compressor-limiter under Gotham Audio Development, a company he co-founded in 1954. When Gotham folded, he took his compressor designs with him.
Enter Sherman Fairchild — heir to the fortune of his father, one of the founders of IBM, and a prolific inventor himself with passions for photography and professional audio. Sherman had founded Fairchild Recording Equipment Company in 1931. Through a mutual connection, he heard about Narma's new limiter design, licensed it, and brought Narma on as Chief Engineer. Narma's creation became the Fairchild 660 and, in 1959, the stereo 670.
The first production 660 went to Rudy Van Gelder at his Hackensack, New Jersey studio — where he was cutting lacquer masters for Blue Note Records. The second unit shipped to Olmsted Sound Studios in New York City, where a decade later Jimi Hendrix would record. The third went to Les Paul himself. Narma made custom consoles for all three. These were not random sales. These were the three most important recording rooms in America, and they all wanted Narma's compressor first.
Inside the Machine — Why 20 Tubes and 11 Transformers
The Fairchild 670's size and weight are not gratuitous. The 65-pound, 6U enclosure is packed with hardware for a reason: most of the components never touch the audio signal. The actual signal path is elegantly simple — an input transformer, a single variable push-pull amplifier stage, and an output transformer. Everything else — those 20 tubes, those 11 transformers, the inductors, the control circuitry — exists solely to generate and manage the side-chain control voltage with enough precision and power to drive the gain cells cleanly.
At the heart of the design are RCA 6386 dual-triode tubes. Each channel uses four of them, wired in parallel, in a push-pull configuration. This parallel topology dramatically lowers impedance and minimizes noise and distortion — essential in an era when engineers were genuinely trying to make things sound as clean as possible. The high control voltages generated by the side-chain circuitry (far higher than comparable designs) give the Fairchild its characteristic grip and authority.
The compression principle is variable-mu: as the control voltage rises, the amplification factor (mu) of the gain-cell tubes falls. Unlike VCA or optical compressors with a fixed ratio, the Fairchild's ratio is program-dependent — starting around 1:1 on quiet signals and rising to as high as 20:1 on loud peaks. The transition is a soft knee so gradual the ear perceives it not as compression but as a kind of tonal focus.

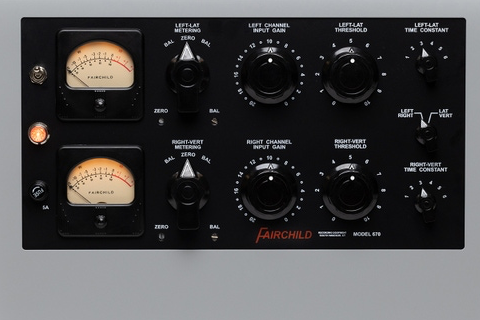

The Six Time Constants — What Every Switch Position Actually Does
One rotary switch. Six distinct personalities. Most engineers never leave position 1 on vocal sources — and most originals show decades of wear on that exact position.
| Position | Attack | Release | Best for |
|---|---|---|---|
| 1 Most Used | 0.2 ms | 0.3 sec | Vocals, vocal bus, pop productions |
| 2 | 0.2 ms | 0.8 sec | Vocals with more sustain, acoustic instruments |
| 3 | 0.4 ms | 2 sec | Strings, woodwinds, classical |
| 4 | 0.8 ms | 5 sec | Classical, orchestral bus |
| 5 | 0.4 ms | Program-adaptive: 2 sec (peaks) / 10 sec (sustained) | Full mixes, broadcast leveling |
| 6 | 0.2 ms | Program-adaptive: 0.3 sec (peaks) / up to 25 sec (programme) | Mastering, disc cutting, long-form level control |
The user manual originally recommended positions 1 and 2 for pop music, positions 3 and 4 for classical. Position 6 was designed for vinyl disc cutting — where consistent average levels over a full side were critical.
Three Studios. Three Legends.
One Compressor.

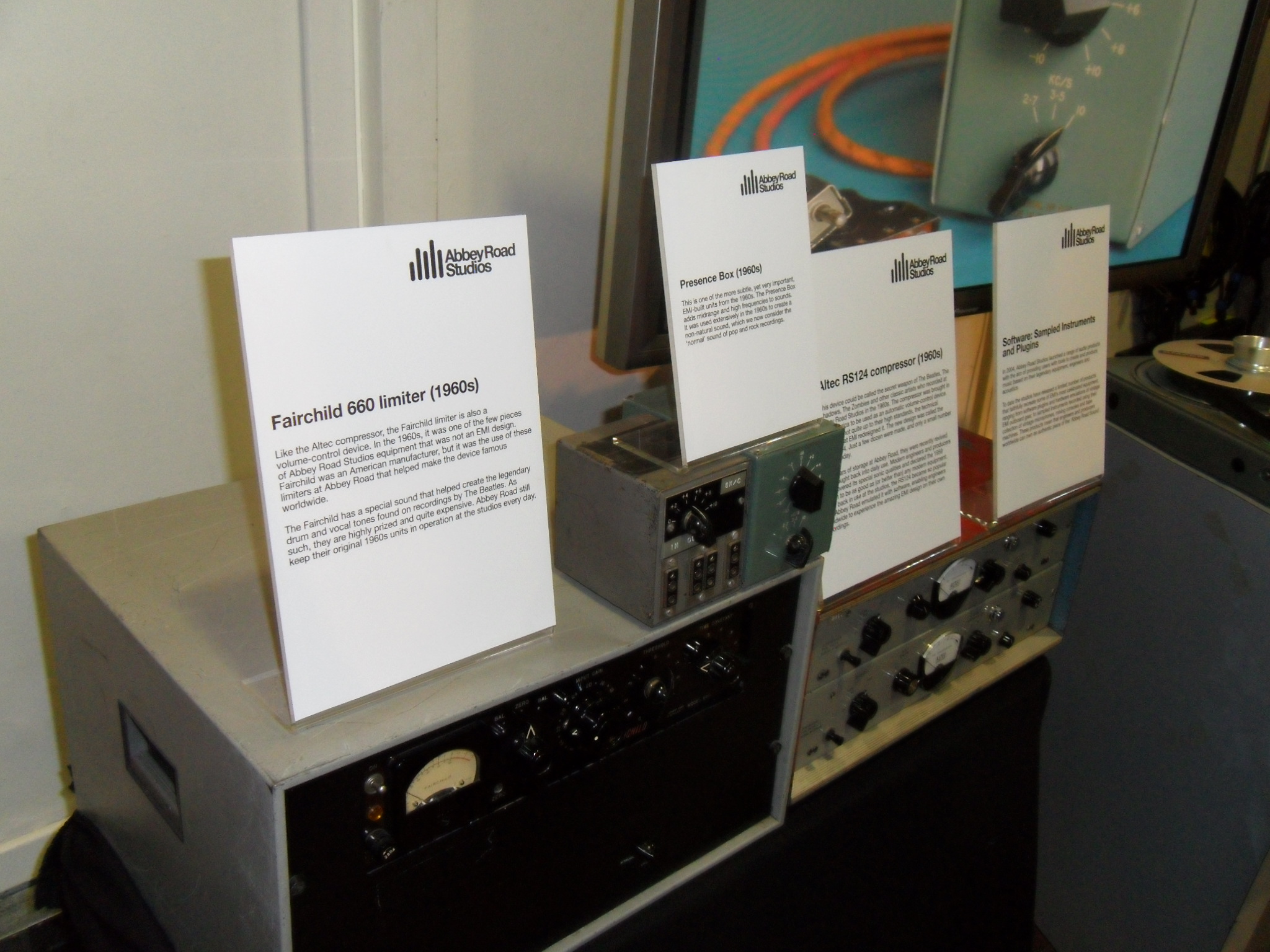

From A Hard Day's Night (1964) onward, Abbey Road ran Fairchild 660 units on virtually every Beatles session. Geoff Emerick used them on John Lennon's and Paul McCartney's vocals from Revolver through Abbey Road. The 660's 0.2ms attack removed sibilance without dulling; the slow release added what engineers called "silk." It also gave Ringo's kick and snare that locked, focused transient that defined a generation of drum sound.
Rudy Van Gelder received the very first Fairchild 660 ever sold. He used it cutting lacquer masters for Blue Note Records — which means it is on Kind of Blue, A Love Supreme, Somethin' Else, and hundreds more. When mastering engineers talk about the depth and presence in those Blue Note recordings, the Fairchild 660 is part of that answer. The same unit that caught John Coltrane's breath, Miles Davis's trumpet bell, and Art Blakey's rim shots at the source.
The second Fairchild 660 ever sold went to Olmsted Sound Studios in Manhattan. A decade later, Jimi Hendrix would record there — and the Fairchild was part of the signal chain that captured his sessions. Olmsted was one of the most active commercial studios in New York through the 1960s, and having the second unit off the production line gave it a technical advantage that most studios would not catch up to for years.
Records Made Through a Fairchild
"The Fairchild 670 is my favorite piece of gear. Everything sounds great through it — especially vocals, piano, and drums. I like it on my master bus too, even without compressing at all, just for color."
Armando Avila — Producer (Thalia, Luis Fonsi, Gloria Trevi)Note: The wobbly background vocals in the Beatles' "Octopus's Garden" (Abbey Road, 1969) were created by feeding the Fairchild 660's side-chain with a pulsing LFO. Geoff Emerick's deliberate "abuse" of the unit is now one of the most referenced creative compression effects in recording history.
Which Fairchild Is Right for You?
From $29 plug-in to $29,500 reissue. Every option reviewed honestly.
Plug-in Emulation
If your studio is primarily in-the-box, the UAD Fairchild Tube Limiter Collection and Waves PuigChild are genuinely excellent starting points. The UAD emulation in particular is considered the reference-standard plug-in clone — used on major label records daily. Best choice for home studios, bedroom producers, or anyone testing Fairchild compression before investing in hardware.
Shop UAD Fairchild →
500 Series Entry Point
Heritage Audio's 500 Series take on the 670 circuit. Stereo operation in two 500 Series slots, true vari-mu topology, and build quality that takes the Heritage name seriously. Ideal for engineers who want hardware Fairchild compression in a modular, portable format without committing to a full-size unit. Remarkable value at this price point.
Shop Grandchild 670 →
Full-Size Stereo Hardware
The full stereo 670 format from Heritage Audio — 2U rack, same vari-mu compression principle, DC Threshold Control, sidechain filter, and the kind of build quality that belongs in a professional room. A significant step up from the 500 Series in headroom, transformers, and that full-rack presence. The go-to hardware Fairchild for studios that want the real thing without the vintage maintenance costs.
Shop Herchild 670 →
UnFairchild 670M II
UnderTone Audio built the UnFairchild from the original schematics with one goal: the most accurate modern reproduction of the 670 circuit possible, built for working studios. Hand-wired, point-to-point construction. Can be specced with NOS 6386 valves. Revered in mastering rooms and high-end mix suites worldwide. This is for engineers who want to own a Fairchild reference and use it in serious production daily.
Shop UnFairchild →
Authentic Reissue — New Production
Fairchild Recording Equipment has resumed production of the 660 and 670 built to the original specifications. Not a clone — a reissue. Same circuit topology, same transformer specifications, same control layout as units sold in 1959. For studios and collectors who want the Fairchild name on a unit they can actually own and maintain without worrying about NOS tube scarcity in a 65-year-old chassis.
Shop New Fairchild →
Vintage Original
Vintage originals appear rarely and sell immediately. When a working, serviced 660 or 670 comes through Vintage King, it goes to the waitlist first. If owning an original is your goal, the best move is to contact our team now — we know every legitimate original Fairchild that surfaces on the market, and we can advise on condition, servicing costs, and realistic expectations for the 6386 tube situation.
Join the Waitlist →Every Fairchild Format — One Place
Fairchild FAQ
What is the difference between the Fairchild 660 and 670?
The 660 is a single-channel mono unit. The 670 is the stereo version — built by literally doubling the entire 660 circuit and adding a matrixing network between the two channels. The 670 contains 20 tubes and 11 transformers vs. the 660's 10 tubes. Critically, the 670 can operate in Left/Right stereo mode or in Mid/Side matrix mode — the latter being why it was designed in the first place, for stereo vinyl disc cutting. Both share the same variable-mu RCA 6386 tube topology and the same six time-constant switch positions.
How many original Fairchilds survive today?
Fewer than 1,000 stereo 670 units were ever made, and fewer than 800 mono 660s. Of those, a significant number no longer function or have been cannibalized for parts — especially as the NOS RCA 6386 tubes have become increasingly scarce and expensive. Working, properly serviced originals are rare enough that most studios never encounter one. When one comes to market in good condition, it sells immediately and at premium prices — often $30,000 to $50,000 or more for a verified, serviced 670.
Why does the Fairchild sound so good on vocals?
Three reasons work together. First, the 0.2ms attack time (position 1) catches sibilant consonants and harsh transients before they distort or fatigue the ear — but so quickly the ear never registers the reduction as clamping. Second, the variable-mu soft knee means the ratio rises gradually from near-unity, so the compression sounds like tonal focus rather than control. Third, the signal path is an exceptionally clean transformer-coupled tube stage — one that adds a subtle three-dimensionality that engineers describe as "silk" or "presence." Run a vocal through a working Fairchild and the comparison is immediate.
What is a variable-mu compressor and why does it matter?
Variable-mu compressors use vacuum tubes whose amplification factor (mu) decreases as the control voltage increases. Unlike a VCA compressor (which uses a voltage-controlled amplifier with a defined ratio) or an optical compressor (which uses a light element), the Fairchild's tubes physically change their behavior based on the signal hitting them. The result is a compression curve that starts near 1:1 for quiet passages and rises to 20:1 for loud peaks — entirely program-dependent. This is why it sounds "musical" rather than mechanical: the compressor responds to the music rather than applying a fixed rule to it.
What is the 6386 tube and why is it getting scarce?
The RCA 6386 is a remote-cutoff dual-triode tube used as the gain cell in the Fairchild. RCA discontinued production decades ago. The new-old-stock (NOS) supply has been shrinking for years as Fairchild owners, cloners, and servicing engineers work through the remaining stock. JJ Electronic now makes a modern 6386 substitute, but the debate over whether it sounds identical to NOS continues. High-quality NOS 6386 tubes now fetch serious prices individually. For anyone buying a vintage Fairchild, the tube supply question is a real part of the ownership conversation — and one of the reasons new production reissues like the Fairchild RE units are attractive despite the price.
Can the Fairchild be used as a mix bus compressor?
Yes, but carefully. The Fairchild was designed for peak control and mastering, not the kind of mix-bus punch shaping that 1176s and SSL G-bus compressors are used for. Its 0.2ms minimum attack is extremely fast — which means on a full mix with heavy bass transients, it can reduce punch if you're not careful. Where it excels on the mix bus is as a "glue" processor: subtle leveling with no audible compression, just the transformer-tube signal path adding coherence and focus. Many engineers run minimal or no gain reduction (watching the meter idle near zero) and use it purely for the color. Position 1 is still usually the right starting point.
